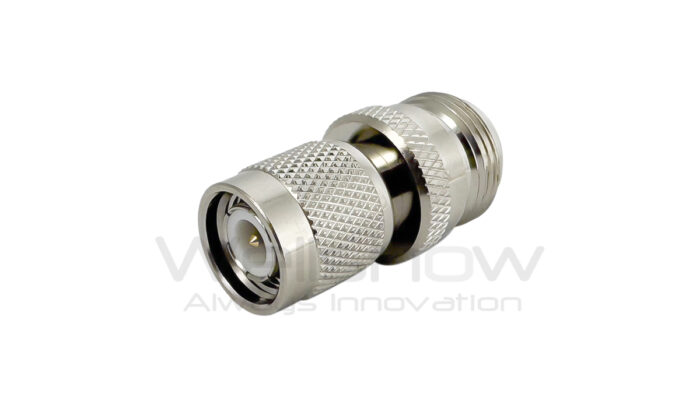

Adaptor, TNC Plug(Male) to N Jack(Female), Straight, 4GHz
Downloads
RF Connector Adaptor, TNC Plug(Male) to N Jack(Female), Straight, 4GHz
Related Products
| Parts Status | Active |
| Adaptor Type | Between-Series |
| Adapter Configuration | TNC Plug(Male) to N Jack(Female) |
| Orientation | Straight |
| Mounting Feature | Not Applicable |
| IP Rating | Not Rated |
| Terminates to Cable | Not Applicable |
| Isolated | No |
| Extended Dielectric | No |
| Impedance | 50ohm |
| Frequency (Max.) | 4GHz |
| VSWR (Max.) | 1.2 |
| Body Material | Brass |
| Body Finish | Nickel |
| Center Contact Material | Phosphor Bronze |
| Center Contact Finish | Gold |
| Dielectrica Material | Teflon(PTFE) |
| Temp. (Max.) | 165℃ |
| Temp. (Min.) | -65℃ |
