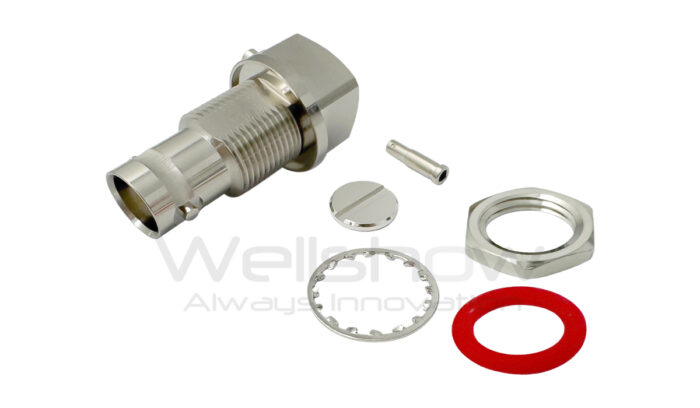

Name: BNC Jack(Female) Right Angle Bulkhead w/Oring for 1.37, 1.37Low Loss, 50ohm, 1GHz - Wellshow Technology
SKU: C16DD3F137049

RF Connector BNC Jack(Female) Right Angle Bulkhead w/Oring for 1.37, 1.37Low Loss, 50ohm, 1GHz

Antenna
Cable Assembly
Telecommunication
Automotive
Broadcast (75 ohm)
Medical Equipment

Bayonet Coupling Mechanism:

Providing a quick and secure connection with a simple twist-lock design, making it ideal for frequent connect and disconnect applications.

Wide Frequency Range Options:

50 ohm Impedance: Frequency range DC-4GHz.
75 ohm Impedance: Frequency range DC-3GHz for video and broadcasting-related industries.

Versatile Design Options:

Cable connectors are designed to accommodate miniature coaxial cables, flexible cable and Low Loss cables.
Panel connectors offer diverse mounting options, including 4-Hole and Bulkhead Panel Mounting.
Through-Hole PCB connector is available.

Parts Status	Active
Series	BNC
Gender	Jack(Female) Body/Jack(Female) Pin
Coupling Mechanism	Bayonet Lock
Orientation	Right Angle
Termination Style	Cable-Crimp
Contact Termination	Solder
Ground Termination	Solder
Mounting Type	Panel Mount
Mounting Feature	Bulkhead Rear Mount
IP Rating	IP67 Panel Mounting
Terminates to Cable	1.13, 1.13Low Loss
Isolated	No
Extended Dielectric	No
Impedence	50ohm
Frequency (Max.)	1GHz
VSWR (Max.)	1.5
Body Material	Brass
Body Finish	Nickel
Center Contact Material	Phosphor Bronze
Center Contact Finish	Gold
Dielectrica Material	Teflon(PTFE)
Temp. (Max.)	165℃
Temp. (Min.)	-65℃

BNC Jack(Female) Right Angle Bulkhead w/Oring for 1.37, 1.37Low Loss, 50ohm, 1GHz
