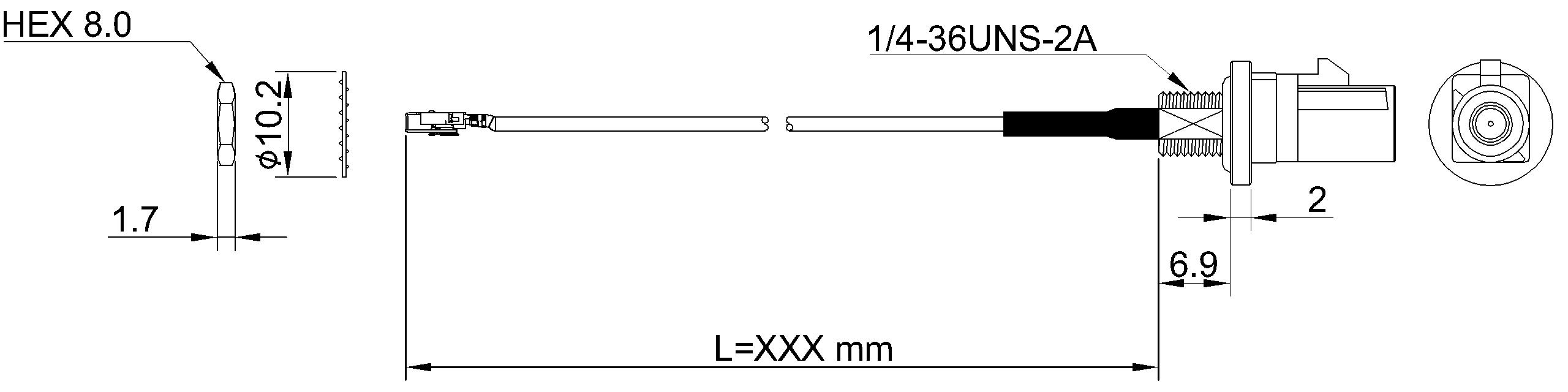

IPEX MHF LK to 1.37(BK) to Fakra(M) bh. front mount wOring, N code(Green), L=VARY, 4GHz
Downloads
| End A | Cable, Color | End B | Length |
| 20670-001R-37 3376-000 (Lock) |
1.37, Black | C53CU33137021N-1 | Customized |
Electrical
| Impedance | 50 ohm | |
| Frequency Range | DC ~ 4GHz | |
| Dielectric Withstanding Voltage | AC 200 Vrms | |
| VSWR* | DC - 4GHz | 1.6 Max. |
| 4.0 - 6GHz | - | |
| 6.0 - 9GHz | - | |
*Test result will be different from cable length.
Environmental
| Temperature Range | -40°C to +85°C | |
| RoHS | Compliant with Exemption 6c | |
| California Prop 65 | Warning - Contained LEAD, NICKEL | |
Mechanical
| IPEX MHF LK | Fakra | |
| Mating Cycles | 30 Max. | - |
| Coupling Mechanism | Snap-on | Push-on |
Material
| IPEX MHF LK | Fakra | |
| Body Material | Phosphor Bronze | Brass |
| Body Plating | Nickel Plating | Nickel Plating |
| Insulator | PBT | Teflon |
| Contact Material | Phosphor Bronze | Brass |
| Contact Plating | Gold Plating | Gold Plating |
** All advanced customization requests will be discussed by emails.
