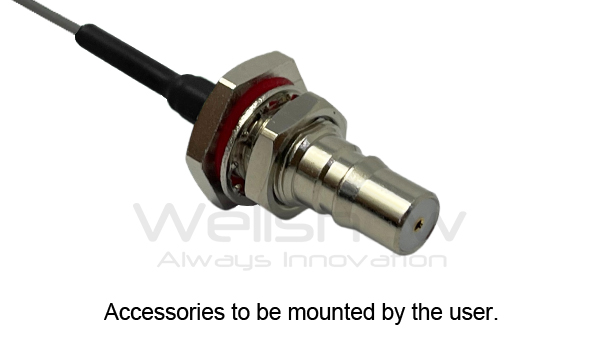

IPEX MHF5L to 1.13(GR) to QMA(F) bh. wOring, L=VARY, 9GHz
Downloads
| End A | Cable, Color | End B | Length |
| 20668-001R-13 | 1.13, Gray | C62CD3F113002A | Customized |
Electrical
| Impedance | 50 ohm | |
| Frequency Range | DC ~ 9GHz | |
| Dielectric Withstanding Voltage | AC 200 Vrms | |
| VSWR* | DC - 3GHz | 1.3 Max. |
| 3.0 - 6GHz | 1.5 Max. | |
| 6.0 - 9GHz | 1.6 Max. | |
| 9.0 - 12GHz | - | |
| 12.0 - 15GHz | - | |
*Test result will be different from cable length.
Environmental
| Temperature Range | -40°C to +85°C | |
| RoHS | Compliant with Exemption 6c | |
| California Prop 65 | Warning - Contained LEAD, NICKEL | |
Mechanical
| IPEX MHF 5L | QMA | |
| Mating Cycles | 30 Max. | 100 Min. |
| Coupling Mechanism | Snap-on | Snap-on |
Material
| IPEX MHF 5L | QMA | |
| Body Material | Phosphor Bronze | Brass |
| Body Plating | Nickel Plating | Nickel Plating |
| Insulator | LCP | Teflon |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Plating | Gold Plating | Gold Plating |
** All advanced customization requests will be discussed by emails.
