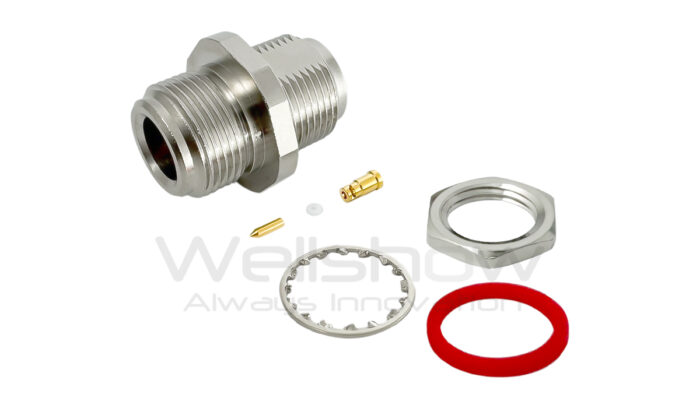

RP N Jack(Female) Bulkhead Front Mount w/Oring for 1.13/1.13LL, 50ohm, 6GHz
Downloads
RF Connector RP N Jack(Female) Bulkhead Front Mount w/Oring for 1.13/1.13LL, 50ohm, 6GHz
The RP-N (Reverse Polarity N) connector is a commonly used RF connector in wireless communication and radio frequency applications. It is primarily used in wireless devices operating at 2.4GHz and 5GHz frequencies, such as Wi-Fi, antennas, and wireless bridges.
Applications:
Wireless communication devices (Wi-Fi, WLAN, Bluetooth antennas)
Wireless base stations and routers
Industrial and military RF applications
Indoor and outdoor wireless network systems
Wireless System
RP N Connector Features and Benefits:
Reverse Polarity (RP) Design:
- RP-N connector has a reversed center contact. For example, an RP-N male has internal threads but contains a socket (female pin) instead of a male pin, while an RP-N female has external threads and a male pin inside.
- Similar to standard N-type connectors, the RP-N connector uses a threaded locking mechanism to ensure a secure connection, making it suitable for environments with vibrations.
The RP-N connector is specifically designed for wireless applications, featuring a reverse polarity design to comply with regulatory requirements while maintaining the durability and high-frequency performance of standard N-type connectors.
