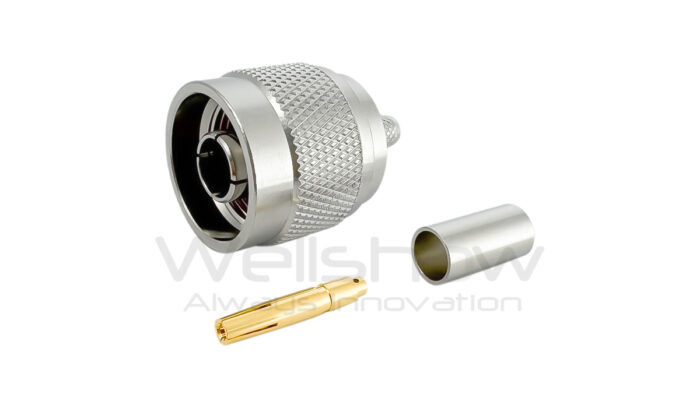

RF Connector RP N Plug(Male) for RG58, 50ohm, 6GHz
The RP-N (Reverse Polarity N) connector is a commonly used RF connector in wireless communication and radio frequency applications. It is primarily used in wireless devices operating at 2.4GHz and 5GHz frequencies, such as Wi-Fi, antennas, and wireless bridges.
Applications:
Wireless communication devices (Wi-Fi, WLAN, Bluetooth antennas)
Wireless base stations and routers
Industrial and military RF applications
Indoor and outdoor wireless network systems
Wireless System
RP N Connector Features and Benefits:
Reverse Polarity (RP) Design:
- RP-N connector has a reversed center contact. For example, an RP-N male has internal threads but contains a socket (female pin) instead of a male pin, while an RP-N female has external threads and a male pin inside.
- Similar to standard N-type connectors, the RP-N connector uses a threaded locking mechanism to ensure a secure connection, making it suitable for environments with vibrations.
The RP-N connector is specifically designed for wireless applications, featuring a reverse polarity design to comply with regulatory requirements while maintaining the durability and high-frequency performance of standard N-type connectors.
| Parts Status | Active |
| Series | RP N |
| Gender | Plug(Male) Body/Jack(Female) Pin |
| Coupling Mechanism | Threaded |
| Orientation | Straight |
| Termination Style | Cable-Crimp |
| Contact Termination | Crimp |
| Ground Termination | Crimp |
| Mounting Type | Not Applicable |
| Mounting Feature | Not Applicable |
| IP Rating | Not Rated |
| Terminates to Cable | RG58A/U, RG58C/U |
| Isolated | No |
| Extended Dielectric | No |
| Impedence | 50ohm |
| Frequency (Max.) | 6GHz |
| VSWR (Max.) | 1.5 |
| Body Material | Brass |
| Body Finish | Nickel |
| Center Contact Material | Phosphor Bronze |
| Center Contact Finish | Gold |
| Dielectrica Material | Teflon(PTFE) |
| Temp. (Max.) | 165℃ |
| Temp. (Min.) | -65℃ |
