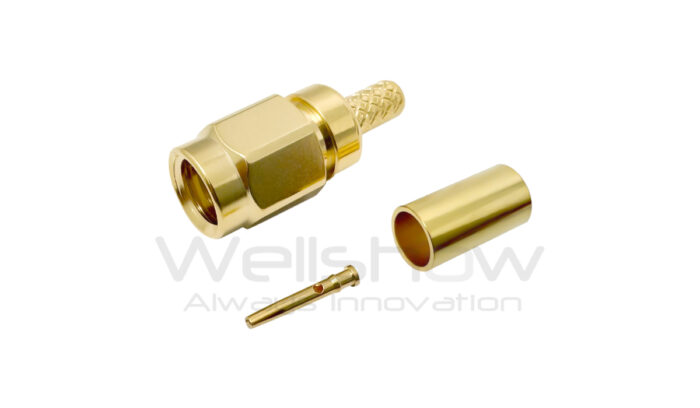

SMC Plug(Male) Straight for RG174, RG316, RG188, 50ohm, 6GHz
Downloads
RF Connector SMC Plug(Male) Straight for RG174, RG316, RG188, 50ohm, 6GHz
Applications:
Antenna
Cable Assembly
Instrumentation
Telecommunication
Vehicle Tracking System
Cellular Mobile System
Wireless System
SMC Connector Features and Benefits:
Threaded Coupling for Secure Connections:
- Providing a more secure and vibration-resistant connection compared to snap-on SMB connectors.
- DC-6GHz for 50ohm: Suitable for higher frequency applications such as data transmission, telecommunications, and RF systems.
- Gold, more common, provides superior conductivity and corrosion resistance.
- Nickel, also available, offers an alternative plating option.
- Cable connectors are designed for miniature coaxial cables and flexible cables.
- PCB Through-Hole type is available.
| Parts Status | Active |
| Series | SMC |
| Gender | Plug(Male) Body/Jack(Female) Pin |
| Coupling Mechanism | Threaded |
| Orientation | Straight |
| Termination Style | Cable-Crimp |
| Contact Termination | Solder |
| Ground Termination | Crimp |
| Mounting Type | Not Applicable |
| Mounting Feature | Not Applicable |
| IP Rating | Not Rated |
| Terminates to Cable | RG174, RG316, RG188 |
| Isolated | No |
| Extended Dielectric | No |
| Impedence | 50ohm |
| Frequency (Max.) | 6GHz |
| VSWR (Max.) | 1.5 |
| Body Material | Brass |
| Body Finish | Gold |
| Center Contact Material | Beryllium Copper |
| Center Contact Finish | Gold |
| Dielectrica Material | Teflon(PTFE) |
| Temp. (Max.) | 165℃ |
| Temp. (Min.) | -65℃ |
